Outline of Facilities
Division | Keihin | Fukuyama | |
---|---|---|---|
Plant | Mizue Recycling Plant | NF Board®Plant | Fukuyama Recycling Plant |
Main equipment | Volumetric feeder Plastic type sorting machine Crusher, pulverizer Gravity separator/sorting machine Washing/dewatering machine Drier Granulator Classifying equipment Storage tank |
Storage tank Pelletizer Board extruder Precision cutting machine |
Volumetric feeder Plastic type sorting machine Crusher, pulverizer Gravity separator/sorting machine Washing/dewatering machine Drier Granulator Classifying equipment Storage tank Pelletizer |
Recycling method | Material recycling Blast furnace reducing agent Coke oven chemical material |
Material recycling | Material recycling Blast furnace reducing agent |
Treatment capacity | 242 t/day | 2 million sheets/year | 254 t/day |
Treatment/Recycling Process
Process | Content |
---|---|
① Receiving | Waste plastic which has been delivered to the plant is weighed and charged to the volumetric feeder. (Receiving process has a temporary storage area.) |
② Sorting | Waste plastic material is sorted to the film line or solid/bolt line by the plastic type sorting machine. Foreign matter is then removed by hand sorting, magnetic sorting and wind sorting. |
③ Crushing and pulverizing | Material is crushed and pulverized to the specified size. |
④ Separation of vinyl chloride | Vinyl chloride is removed by a centrifugal type gravity sorting machine. |
⑤ Washing, dewatering and drying | Material is washed and dewatered, followed by drying. |
⑥ Granulation | Material is granulated to a cylindrical shape of the specified size by a ring die type granulating machine. |
⑦ Pelletizing | After melting by the extruder, foreign matter is removed by a filter, and pellet molding is performed. |
⑧ Board production | Pellets, which are the raw material of the core layer, and the raw material of the skin layers are each melted, and boards are molded by extrusion in 3 layers of 2 different materials. After cooling for a certain time, the boards are cut to the specified dimensions and bundled in lots. |
⑨ Shipping | Granulated recycled plastic products are shipped by a dedicated screw truck. Pellets are packed in flexible containers for shipping, and NF Board® is shipped in bundled lots. |
Recycling Results
Contract Results of Container and Packaging Plastic Recycling
Facility O&M (Operation & Maintenance) Record (Mizue/Fukuyama)
FY 2020
1)Mizue
2)Fukuyama
FY 2019
1)Mizue
2)Fukuyama
FY 2018
1)Mizue
2)Fukuyama
FY 2017
1)Mizue
2)Fukuyama
FY 2016
1)Mizue

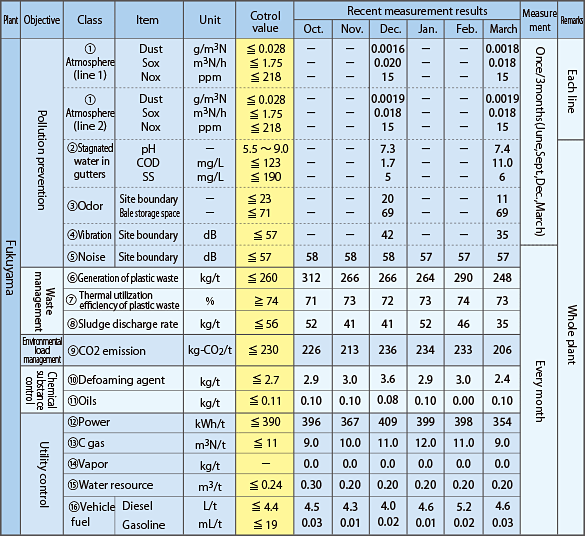

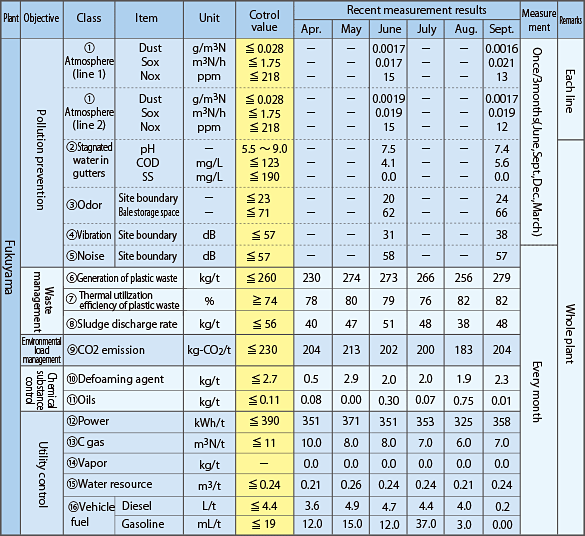

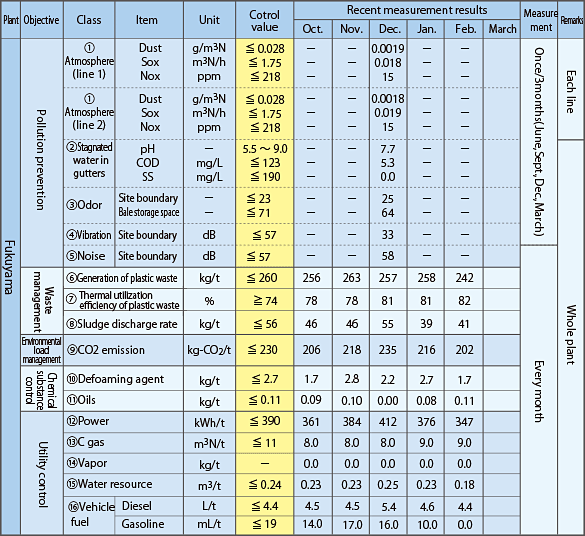

2)Fukuyama
FY 2015

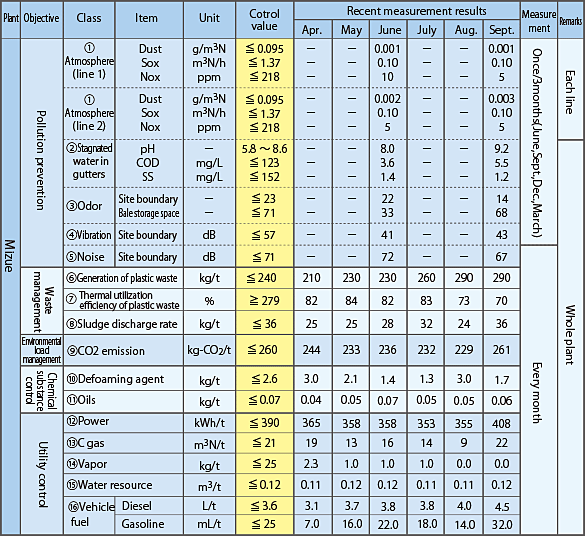

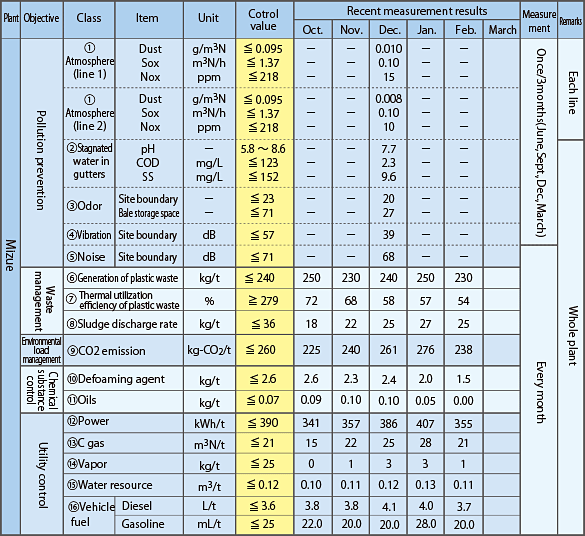

1)Mizue
FY 2014

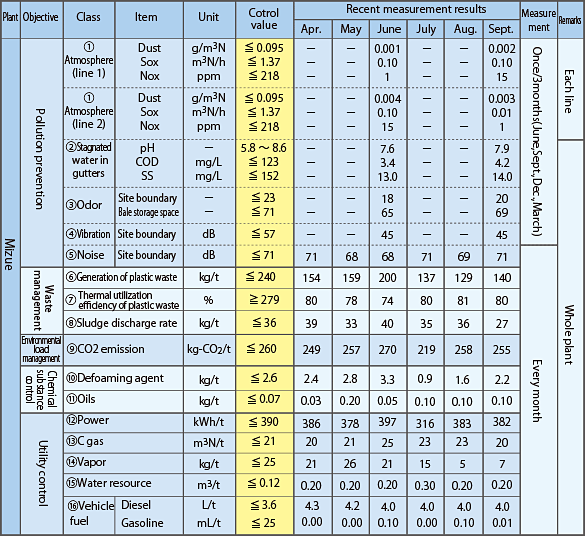

1)Mizue
FY 2013

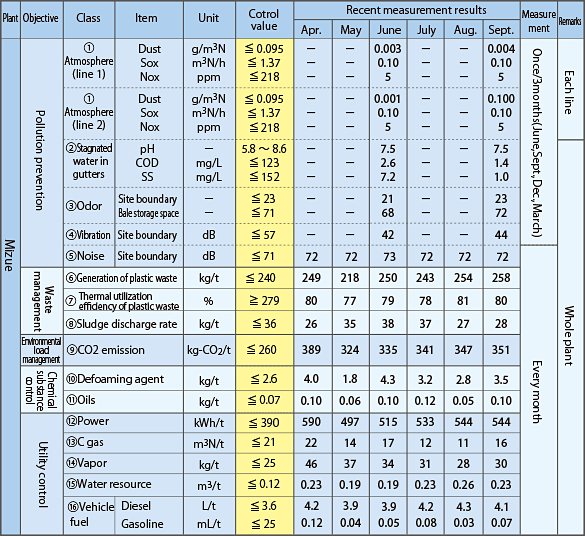

1)Mizue
FY 2012

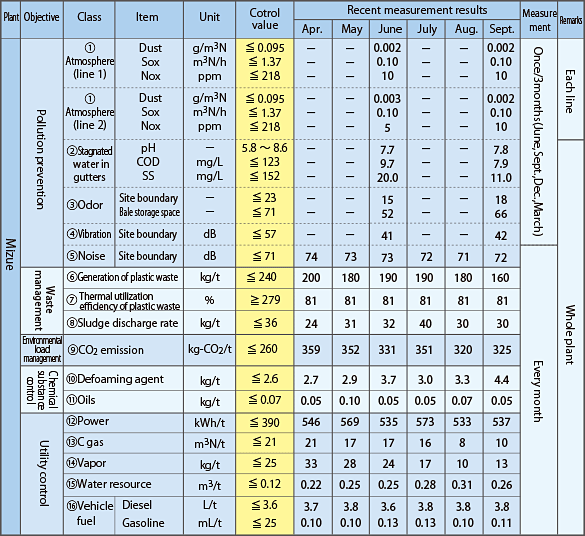

1)Mizue
FY 2011

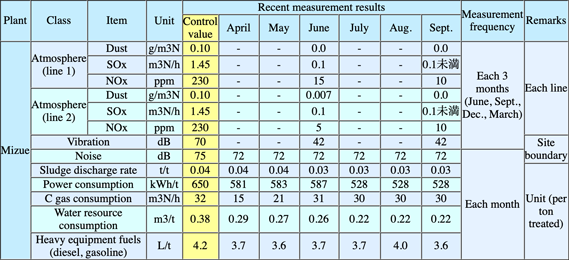

1)Mizue
